Emission control information label

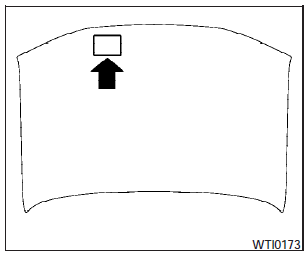

The emission control information label is attached to the underside of the hood as shown.
