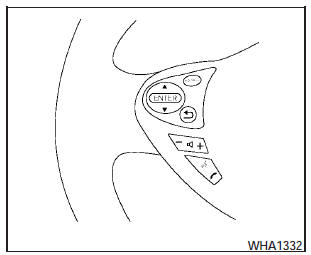

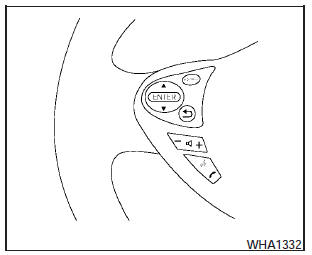

1. Press the switch located on the steering wheel.

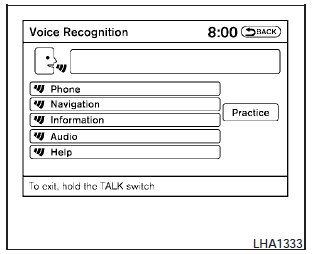

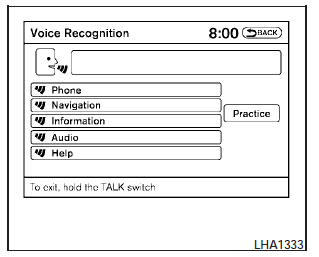

2. A list of commands appears on the screen, and the system announces, Would you like to access Phone, Navigation, Information, Audio or Help? 3. After the tone sounds and the icon on the screen changes from to , speak a command.

4. Continue to follow the voice menu prompts and speak after the tone sounds until your desired operation is completed.

Operating tips

- Say a command after the tone. Voice commands cannot be accepted when the icon is .

- Commands that are available are always shown on the display and spoken through voice menu prompts. Commands other than those that are displayed are not accepted.

Please follow the prompts given by the system.

- If the command is not recognized, the system repeats the announcement. Repeat the command in a clear voice.

- Press the switch on the steering wheel to return to the previous screen.

- If you want to cancel the command, press and hold the switch. The message, Voice cancelled will be announced.

- If you want to adjust the volume of the system feedback, push the volume control switch on the steering wheel or use the audio system volume knob while the system is making an announcement.

How to speak numbers

Voice Recognition requires a certain way to speak numbers when giving voice commands.

Refer to the following examples.

General rule:

- Only single digits 0 (zero) to 9 can be used.

- When saying the phone number 800-662- 6200, the system will accept eighthundred in addition to eight zero zero or eight oh oh. 500, 700, and 900 are also supported.

Examples:

- 1-800-662-6200 One eight zero zero six six two six two zero zero One eight hundred six six two six two zero zero

Improving Recognition of Phone numbers:

You can improve the recognition of phone numbers by saying the phone number in three groups of numbers. For example, when you try to call 800-662-6200, say eight zero zero first, and the system will then ask you for the next three digits. Then, say six six two. After recognition, the system will then ask for the last four digits.

Say, six two zero zero. Using this method of phone digit entry can improve recognition performance.

NOTE:

When speaking a house number, speak the number 0 as zero or oh. If the letter O is included in the house number, it will not be recognized as 0 even if you speak oh instead of zero.

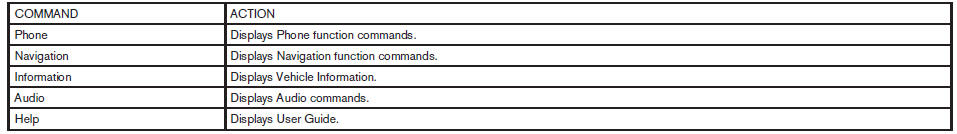

Standard Mode command list

Category Command

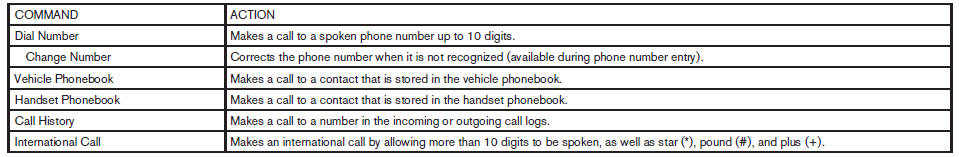

Phone Command

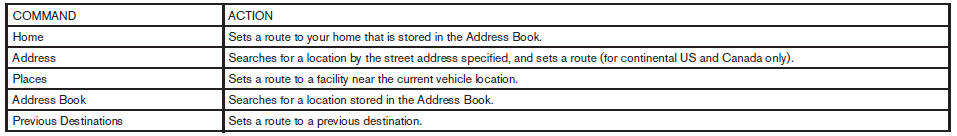

Navigation Command

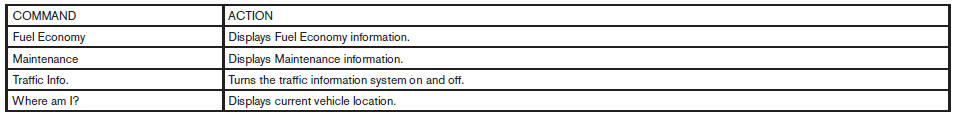

Vehicle Information Command

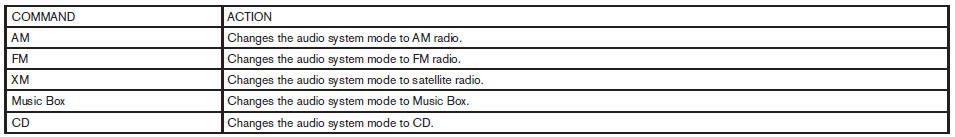

Audio Command:

Voice command examples

Some basic voice command examples are described here.

For navigation system commands, see the separate Navigation System Owners Manual.

Example 1 Placing a call to the phone number 800-662-6200:

1. Press the switch located on the steering wheel.

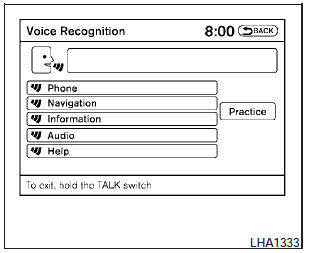

2. The system announces, Would you like to access Phone, Navigation, Information, Audio or Help? 3. Say Phone.

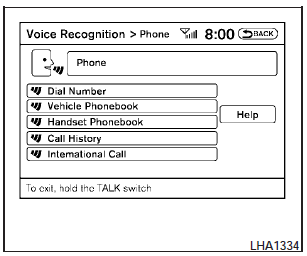

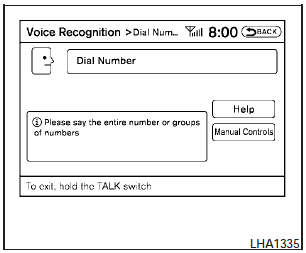

4. Say Dial Number.

5. Say 800.

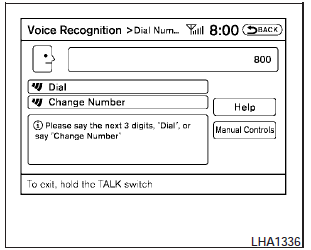

6. The system announces, Please say the next three digits or dial, or say change number.

7. Say 662.

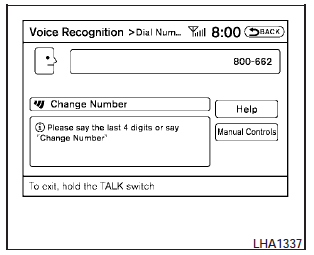

8. The system announces, Please say the last four digits or say change number.

9. Say 6200.

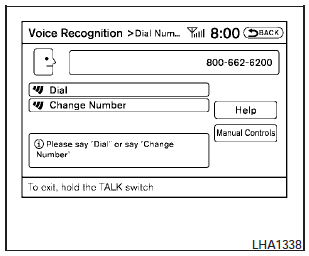

10. The system announces, Dial or Change Number? 11. Say Dial.

12. The system makes a call to 800-662- 6200.

NOTE:

- If the system does not recognize your command, please try repeating the command using a natural voice. Speaking too slow or too loudly may further decrease recognition performance.

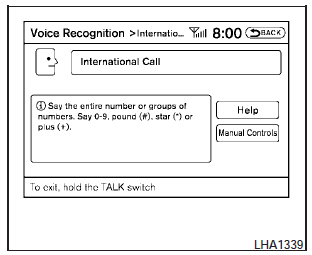

Example 2 Placing an international call to the phone number 011-81-111-222-3333

1. Press the switch located on the steering wheel.

2. The system announces, Would you like to access Phone, Navigation, Information, Audio or Help? 3. Say Phone.

4. Say International Call.

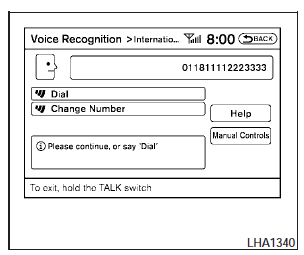

5. Say 011811112223333.

6. Say Dial.

7. The system makes a call to 011-81-111- 222-3333.

NOTE:

Any digit input format is available in the International Number input process, as well as the special characters such as star (*), pound (#), and plus (+).
